Products: VersaPins™:


ALL-IN-ONE Tool for Beamline or Home Source Set-Up.

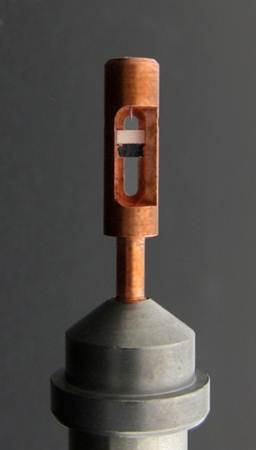

The patented VersaPin™ allows you to perform several operations needed to prepare your beamline or home source for diffraction measurements- all with just one tool, instead of several tools. Save time while improving the accuracy of your measurements.

Applications:

  • Align the sample rotation axis
  • Visualize the X-ray beam
  • Precisely determine beam coordinates
  • Align the sample in the beam
  • Center the beamstop on the beam
  • Calibrate the sample-to-detector distance
  • Calibrate the monochromator energy

Alignment needle for sample rotation axis alignment. Viewable every 90°. Internally mounted to prevent damage.

Scintillator for beam visualization:

  • YAG crystal for synchrotron beamlines; or
  • Phosphor for home sources

Metal Foil for:

  • Visualizing beam center & beam stop centering.
  • Calibrating the sample-to-detector distance (using the powder pattern).



  • Magnetic Stainless Steel Base

  • Can be viewed at camera angles up to 45°

  • Expansion slot for your customization
