Tissue Microarray


Get the opportunity to study with a large number of sample tissue in your researches at low cost and short time by Galileo System of Integrated Systems Engineering.

What is Tissue Microarray Technology?

It is a technique that you can apply histochemical  staining, immuno histochemical  staining, immuno fluorescence staining and FISH techniques to 200 different tissues over one slide.

Advantages of the Method:

  • All of the appropriate tissues in the form of a small ember are evaluated on a single slide at the same time.
  • Decreases the number of application-Time Saving.
  • Reduces the amount of reagent and antibody used-Money Saving.
  • Various biological samples are evaluated under the same reaction conditions-Compliance results increases.
  • Protects biological materials-Provides re-use of donor block.

Punch system with a needle is made manual in all Galileo models of Integrated Systems Engineering. By this way, issue of height difference of drop-down ember holes that occur in a fully automated microarray devices and problem of tissue that can not to be placed into the holes are eliminated.  Solutions according to your needs are presented with different  Micro- Array models.

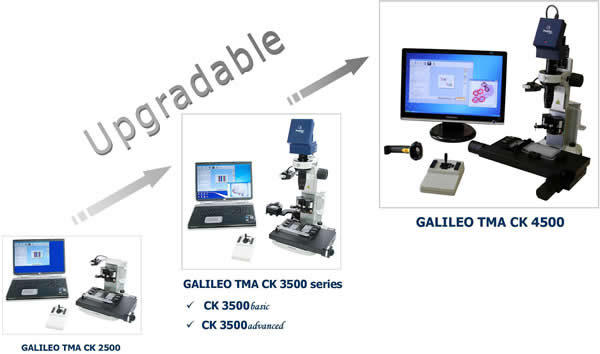

  • Galileo TMA CK 4500
  • Galileo TMA Basic CK  3500
  • Galileo TMA TMA CK 3500 Advenced









Galileo  TMA CK 3500 Series

Galileo TMA CK4500

Galieo  TMA CK3500 basic

Galieo TMA CK3500 advanced

 Speciment Movement

Automatic and Computer-assisted

Stage travel range

125x77 mm

240 x77 mm

Stage speed

1µms-8 µm/s

To 60 mm/s

Resolution

1um

To 0.01 µm

Repeatability

5-7µm

1-2 µm

Needle positioning

Automatic and computer-assisted

Regulation of the core insertion depth

Automatic

Core punching

Manual

Modulartiy of the specimen holder

None

Low

High

Standard histological casettes

Up to 6

Up to 6

Up to 9

Makro Blok

-

1

Üç bloğa kadar

Custom size paraffin blocks

-

1 (120x80mm'e kadar olan bloklar)

-

Microtiter plates

-

-

1

Microfuge vials (1.5-2.0 ml)



-

Up to 12

Up to 24

Glass slides (standard and macro)

-

-

-

User Interface

User friendly dedicated software for TMA designing, constructing and reporting

Punch area selection

Dedicated SW functions manually or digitally overlapping reference slide and donor block

1D&2D Blok

Optional

Included
