Ready-to-use hydrophilic units which offer high flow rates at low inlet pressures for small volume sterilisation of up to around 100 ml liquid volumes when fitted on a standard syringe or on a Dosing Syringe. The combination of large area and optimised geometry of the hydrophilic filter support ensures high flow rates and throughputs.
The main applications of these syringe filters are culture of tissues media, serum, difficult to filter biological fluids etc.
SPECIFICATIONS For Cellulose Acetate GyroDisc®
|
Dead volume
|
<100 µl
|
|
Volume Throughput
|
120 ml
|
|
Filtration area
|
4.9 cm2
|
|
Limits for use
|
Max. pressure: 87 psi
Max. temperature: 50°C
|
|
Housing
|
Polycarbonate
|
|
Flow rate
|
Typical flow rate for 0.22 µm: 23ml/min/cm² @ 1bar
Typical flow rate for 0.45 µm: 46ml/min/cm² @ 1bar
|
|
Bubble points
|
Water wetted, >= 3.4 bar (0.22 µm), >= 2.2 bar (0.45 µm)
|
|
CATALOGUE #
|

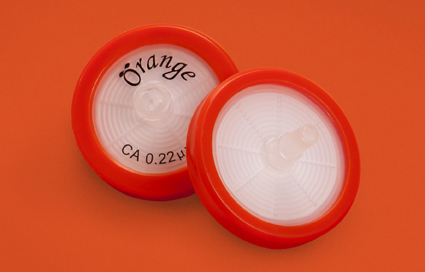

1920012
|
1920027
|
|
|
Diameter mm
|
30
|
30
|
|
Porosity µm
|
0.22
|
0.22
|
|
Inlet connection
|
LLF
|
LLF
|
|
Outlet connection
|
ML
|
ML
|
|
Sterile
|
Yes
|
No
|
|
Packaging
|
50
|
50
|
|
CATALOGUE #
|

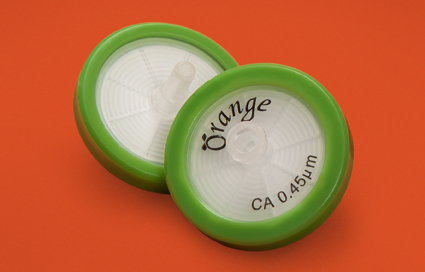

1920014
|
1920029
|
|
|
Diameter mm
|
30
|
30
|
|
Porosity µm
|
0.45
|
0.45
|
|
Inlet connection
|
LLF
|
LLF
|
|
Outlet connection
|
ML
|
ML
|
|
Sterile
|
Yes
|
No
|
|
Packaging
|
50
|
50
|
|
