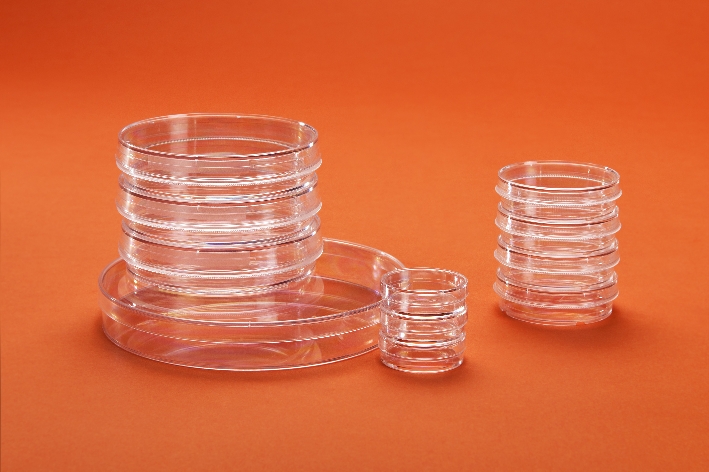

| OrDish | culture of tissues Dishes |
| |
|
Orange Scientific culture of tissues Dishes provide several innovative improvements over the conventional dishes.
 |
|
A rim around the dish ensures safe, easy pick up and handling on the 60 and 100 diameter dishes. Feeling the rim indicates that the entire dish is picked up and not just the cover. |
| Dish hourly 3, 6, 9, 12 indications around the dish |
|

|
Key Features
-
Made of USP VI class virgin Polystyrene, high clarity and toughness, high light transferability with minimal light distortion
-
Guaranteed even surface refinement in the growth zone
-
Special surface treatment – no chemicals are used – to provide an optimal growth surface
-
Optimum optical clarity for microscope observation
-
Packaged in ‘peel-off’ bags to ease opening and are resealable thus preventing contamination
-
Special design allows easy and stable stacking
-
Culture dishes are certified as having been sterilised by gamma radiation
-
Culture dishes are certified as being DNA and RNA free
-
Culture dishes are certified as having an endotoxin level of <0.5 EU/ml
-
All certificates are available upon request
| CATALOGUE # |
DESCRIPTION |
DIAMETER (MM)
|
DIMENSIONS (MM) |
CELL GROWTH AREA (CM²)
|
UNITS / BAG
|
UNITS / CASE
|
| 4450100 |
35mm Dish |
32.8 |
12.5 x 37.8 |
8.5 |
10 |
960 |
| 4450200 |
60mm Dish |
52.0 |
17.8 x 58.8 |
21.2 |
10 |
600 |
| 4450300 |
100mm Dish |
87.8 |
22.0 x 95.6 |
60.8 |
10 |
300 |
| 4450400 |
150mm Dish |
135.5 |
21.9 x 143.0 |
143.0 |
1 |
120 |
|
| |
|
|
|
|
| |
|
|
|
 |
|
 |
 |
 |
 |
| |
|
|
| |
|
|
