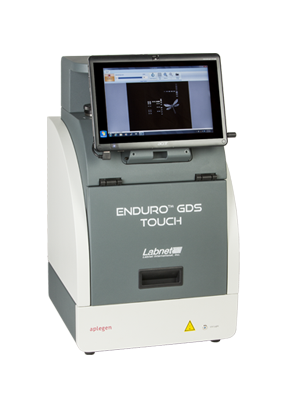

ENDURO™ GDS Touch Gel Documentation System

ENDURO™ GDS Touch Electrophoresis



The ENDURO™ GDS Touch Gel Documentation System is the newest addition to our electrophoresis equipment line. This state-of-the-art imaging system designed for sophisticated needs but with a simple interface provides an incredible combination of performance and value. It is a perfect fit with the rapidly expanding ENDURO™ Electrophoresis and Labnet Molecular Biology.

  • High resolution, 5MP camera
  • No installation necessary – ready to go out of box!

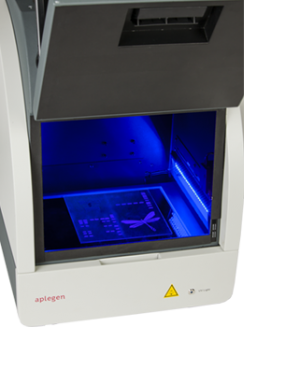

  • Built in Epi-Blue light ideal for applications requiring 490nm light source.
  • System is pre-focused, for reduced steps to image capture
  • Small footprint
  • Integrated cabinet with tablet PC
Product Specifications:

Product Specifications

Camera

5MP (2592 x 1944), scientific grade sensor

Lens

Manual F 1.4 Lens (No Focus Required)

Standard Illumination

Epi-Blue and white light, 302 or 365nm UV transillumination

Pull out UV

For visualizing and cutting bands

System Controls

Integrated Touchscreen computer

Filter

Three position (EtBr included)

Dimensions

13.6 x 12.2 x 27 inch - 34.6 x 31.1 x 68.6 cm

Weight

48 lbs
