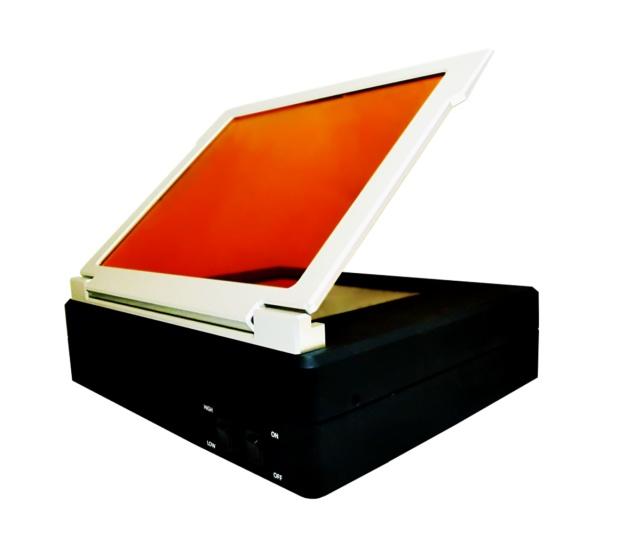

UltraBright LED Transilluminator
Safe for You, Good for your sample

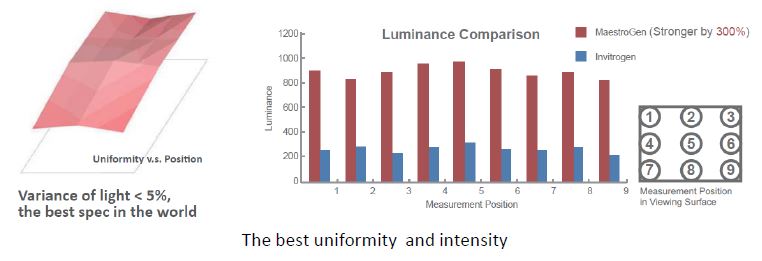

• Accurate: < 5% CV across the full filter area
• Sensitivity: Up to 1 ng nucleic acid
• Safe: No damage to you and your samples
• Easy: Easy for observation and gel cutting
• Flexibility: Suit for several kinds of stains and adjustable intensity
The UltraBright LED Transilluminator is designed for viewing stained gels on the laboratory bench, or within gel documentation systems. Light from the LED source inside the instrument producing light with a narrow emission peak centered at approximately 470 nm, effective for the excitation of nucleic acid and protein stains such EtBr, SYBR® Safe, SYBR Gold, SYBR® Green I & II, SYPRO® Ruby, SYPRO® Orange, Coomassie Fluor™ Orange stains, GelGreen, GelRed and Lumitein™ Protein Gel Stain
| Products | UltraBright LED Transilluminator |
| Cat No. | LB-16 |
| Outer dimensions (mm) | 280D x 340W x 80H |
| View size (mm) | 160D x 200W |
| Wavelength (nm) | 470 nm |
| Light source | Blue LED light |
| Uniformity | < 5% CV |
| Power | 24V - 1.25A |
| Weight (Kg) | 3.6 kg |
Order: UltraBright LED Transilluminator Blue LED, 160 x 200 viewing
More: LB-16
