SlimWhite
Bright and clear
• Uniform: Illumination is designed by lightguide plate with diffuser
• Easy to observe: Light source is under the gel, avoid bubble and reflection
• Cost Effective: Long lifetime (~50,000 hrs), low power consumption

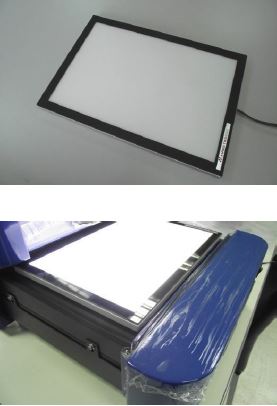

SlimWhite white light panel, the light source which is fit in Slider® Imager or used Independently, easy to view colorimetric gels, coomassie blue or silver stained media.No need to use UV for white light conversion
(a) Light source is under the gel, avoid bubble and reflection. (b) Ordinary light source is upon the gel with bubble and reflection affect.
| Products | SlimWhite |
| Cat No. | SW-01 |
| Outer dimensions (mm) | 210D x 305W x 15H |
| Illumination area (mm) | 170D x 275W |
| Light source | LED s |
| Power | 12V/DC, 0.5A |
| Weight (Kg) | 1.3 kg |
| Wavelength (nm) | White (blue chip + yellow fluorescent powders) |
| Compatibility | Slider® Imager |
| Battery box | Optional |
Order:
| SW-01 | SlimWhite White light for protein gel illumination | 313 |
